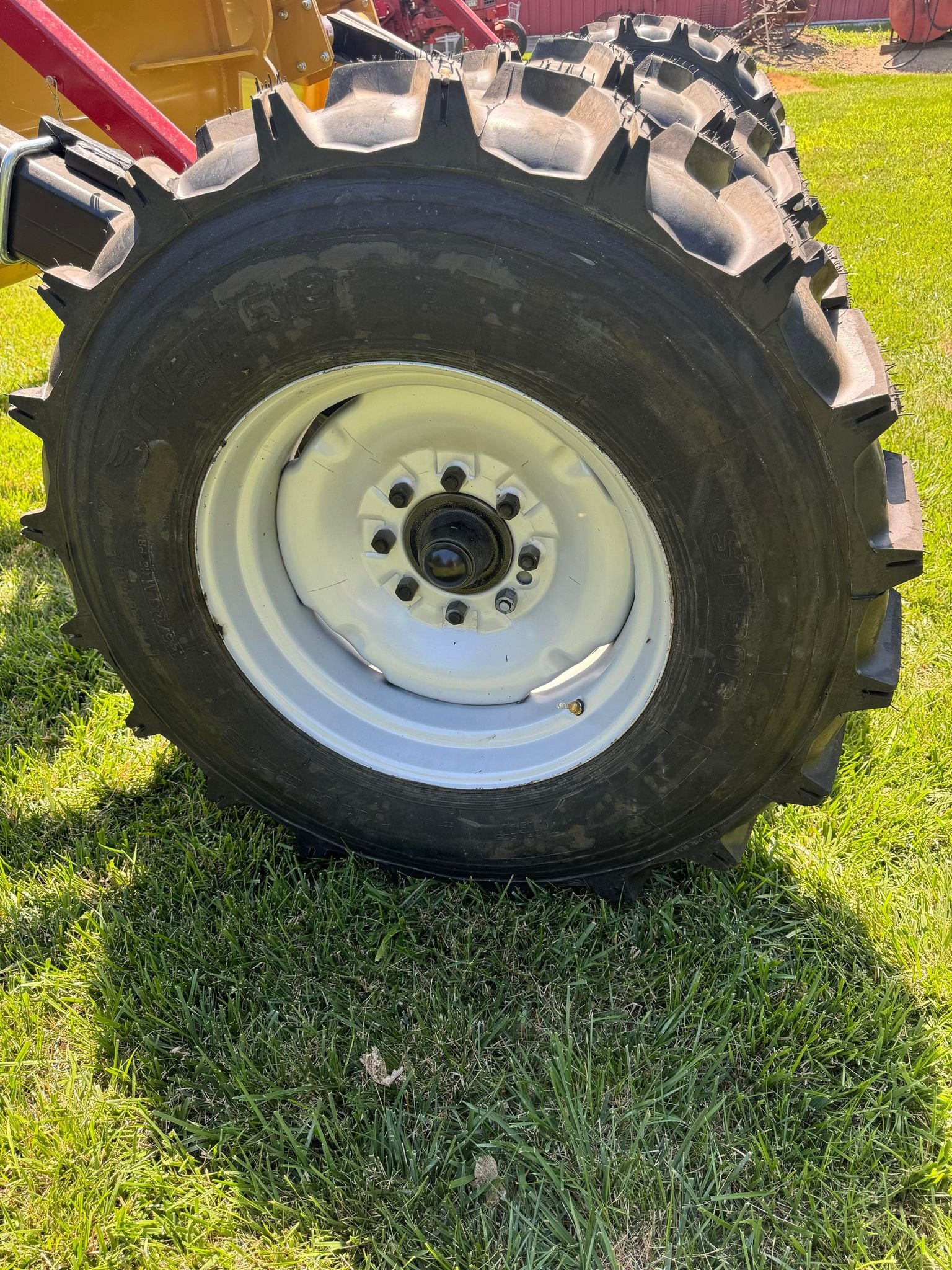

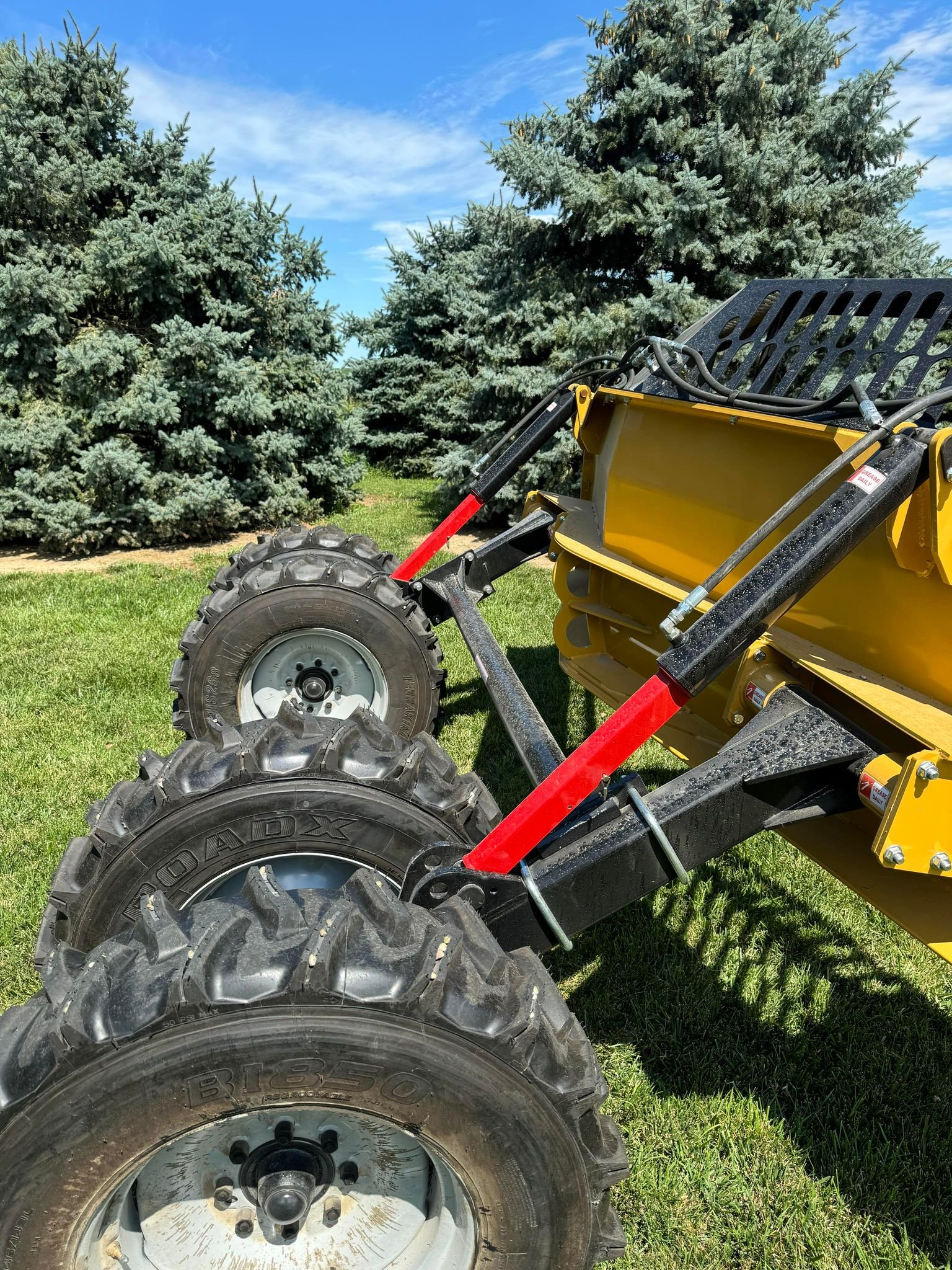

We offer all of Rief Designs Scraper Styles, which offers, multiple styles/variations of Box Scrapers. Including a Patent Pending V-Style Moldboard. The built-in V-Style moldboard reduces the chance of chattering and creating washboards while scraping hard surfaces at a fast rate. These scrapers also cut washboards out extremely well. We have tested them in feeding alleys, cattle pens, gravel roads, parking lots, tractor pulling tracks and on plain bare dirt. All of the scrapers utilize 11R 22.5 pivot tires for better side-hill traction and increased lift height. Along with long stroke cylinders for fine lift control.

These Box Scrapers are something to see and built heavy duty. They work great for dirt work, feedlots scraping manure, driveway work, fixing wash-outs in fields, and nearly any other application you can think of!

“High Speeds No Chattering!”

• HD-1015 - 10’ Wide Box with V-Style Moldboard

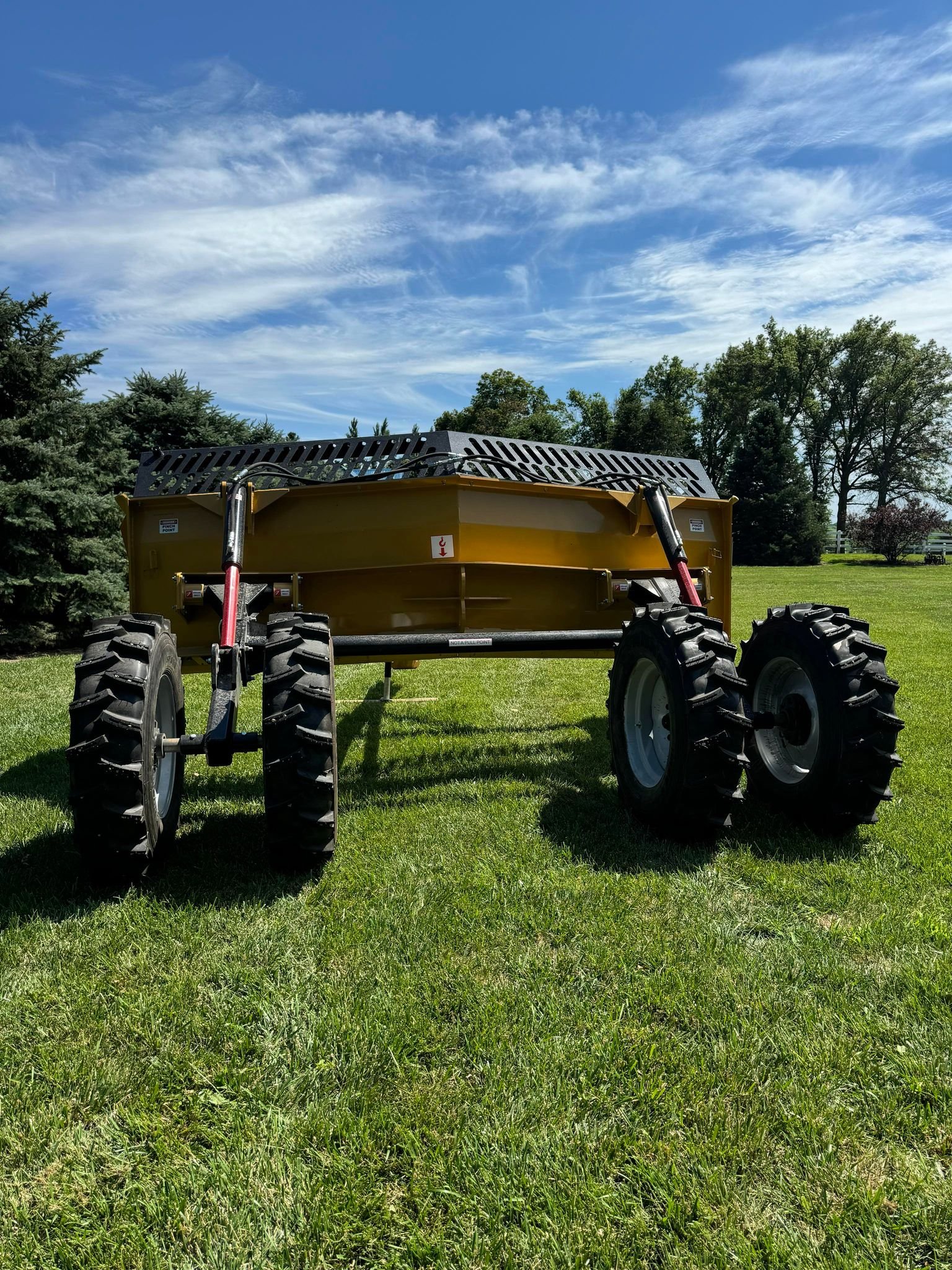

• HD-1215 - 12’ Wide Box with V-Style Moldboard (Most Popular)

• HD-1415 - 14’ Wide Box with V-Style Moldboard

• ALL MACHINES ARE 1/2” PLATE

General Machine Options:

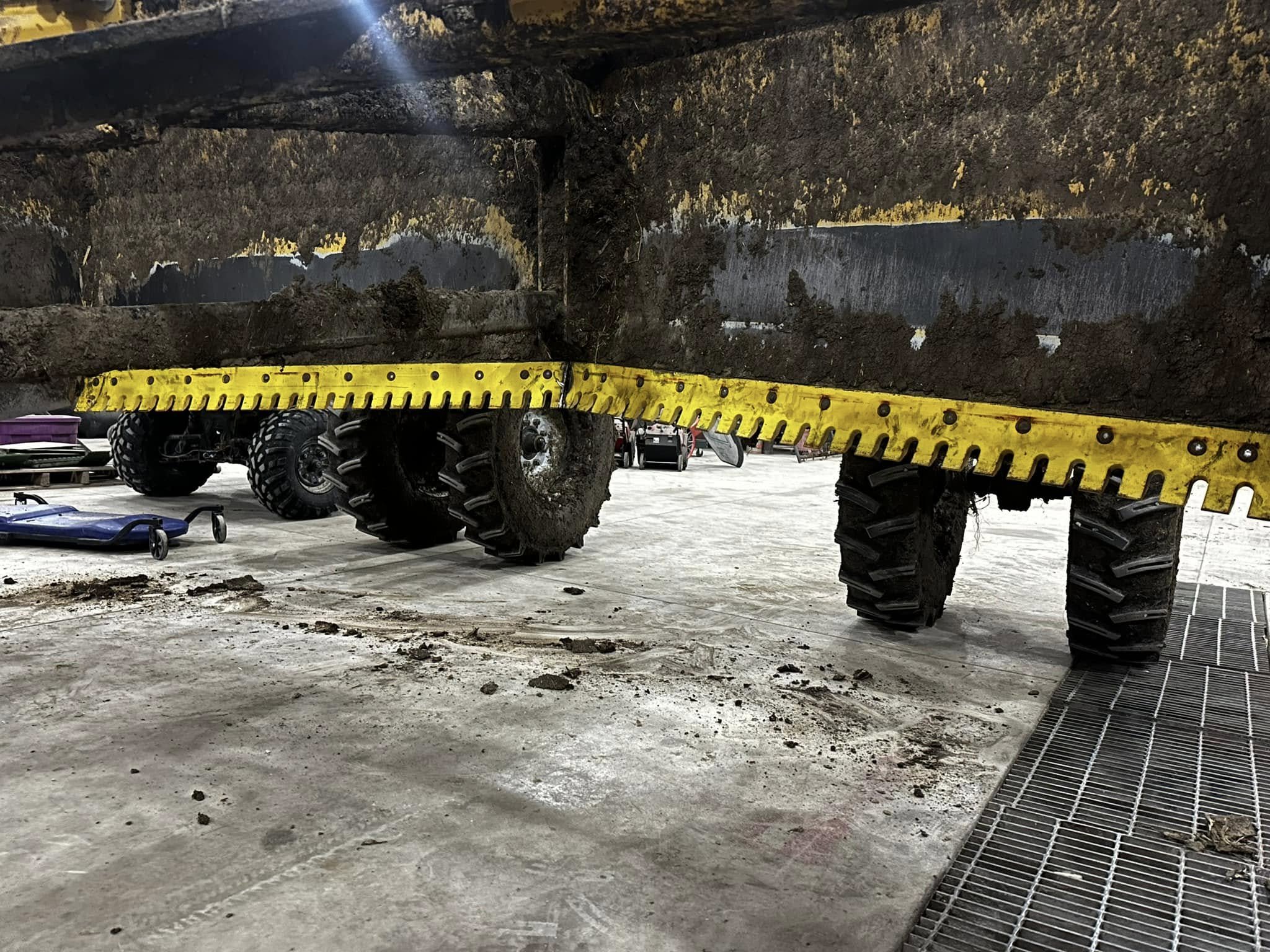

• Blades: Standard or Serrated, 6” OR 8”

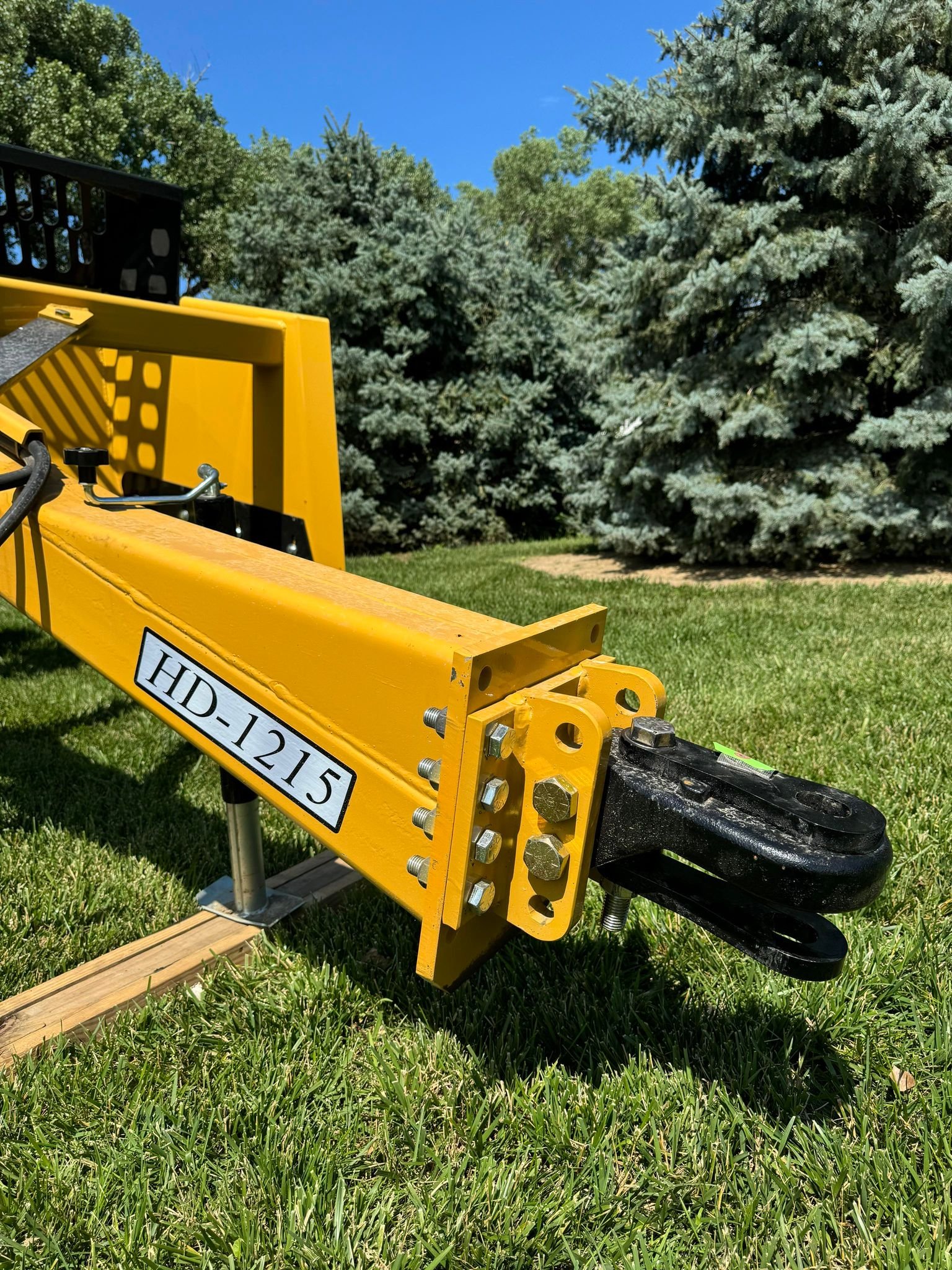

• Hitch: Clevis or Hammer-Strap Style

• Rear Hitch: Pull another implement behind. Such as a Sheeps Foot.

• Tilt Function: Allows for fine grade work on job sites.

• Top Enclosure: For maximum capacity!

HD-1015 Machine Specs:

• Weight: Approx. 5,800 lbs.

• Lift Height: 30”

• Box Capacity: Approx. 6.20 yds.

HD-1215 Machine Specs:

• Weight: Approx. 6,200 lbs.

• Lift Height: 30”

• Box Capacity: Approx. 7.64 yds.

HD-1415 Machine Specs:

• Weight: Approx. 6,800 lbs.

• Lift Height: 30”

• Box Capacity: Approx. 9.15 yds.
